TGD
DESCRIPTION

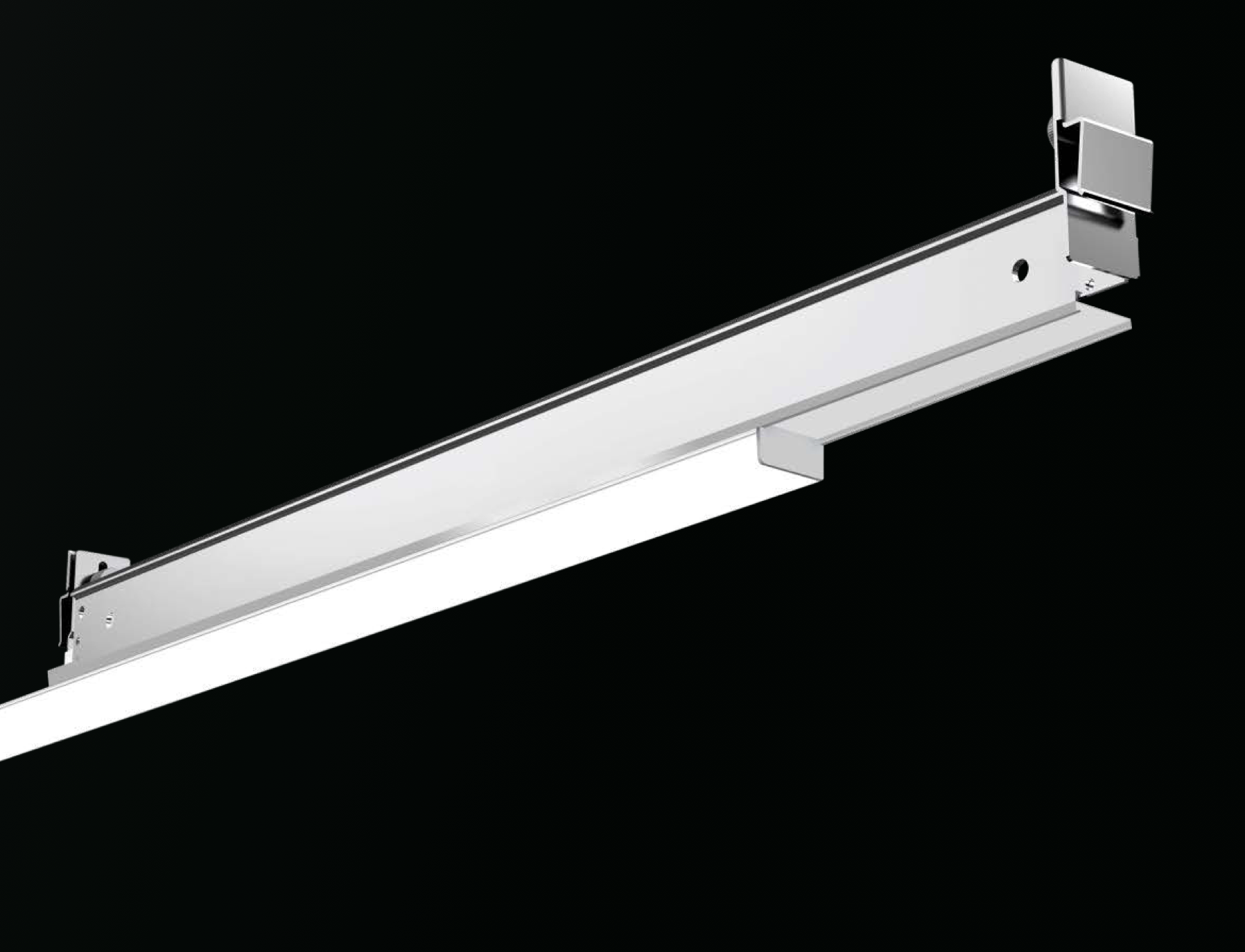

The Vivid Forms TGD T-Grid Linear Fixture is an innovative LED lighting solution designed for offices, schools, retail, and healthcare environments. Available in 2’ and 4’ lengths with wattage options of 10W and 20W, it offers selectable color temperatures of 3000K, 3500K, 4000K, and 5000K. Featuring high efficacy up to 650 lm/ft, 0-10V dimming compatibility, and flexible installation across 9/16” flat, slot, interlude, and 15/16” flat T-grid ceilings, the TGD series integrates seamlessly into modern spaces with a sleek design and remote driver system for easy installation.
APPLICATION

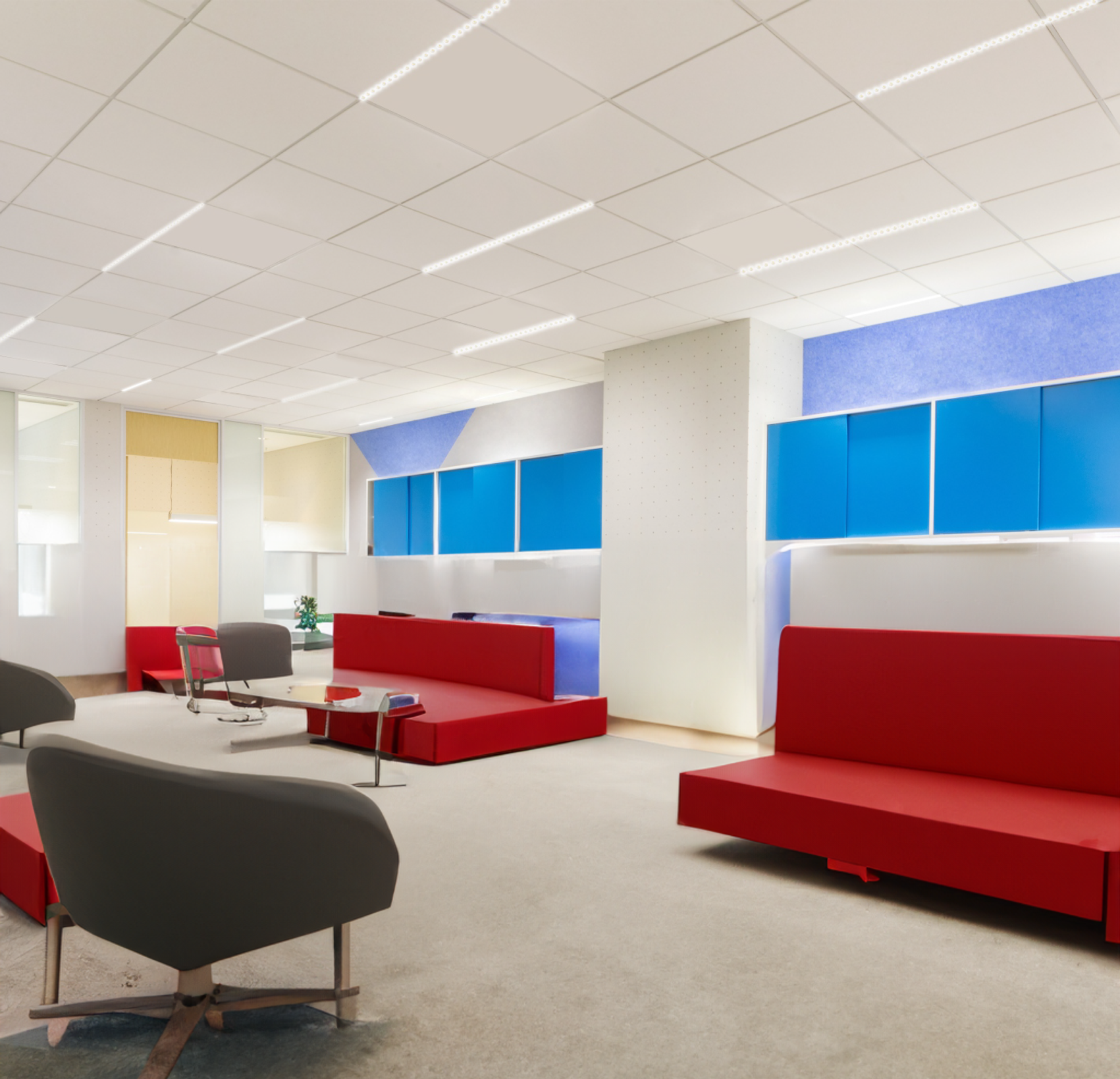

Perfect for a wide range of indoor environments, including offices, schools, hospitals, hotels, supermarkets, retail locations and other indoor lighting needs. Designed for exceptional performance, this fixture enhances any space with its reliable illumination.
LENGTH
The available lengths are 2 feet and 4 feet.
FEATURES
– Detachable LED module and T-grid bracket for flexibility
– CRI options 80+
– 0-10V Dimming to 10%
– Damp location rated and IC rated
– Customizable patterns (e.g., “L”, “T”, “口”) for unique ceiling designs
CONSTRUCTION
The construction features an aluminum housing that acts as a heat sink to maximize LED life.. Damp rated in operating ambient temperatures of -20˚C – 40˚C.
MOUNTING

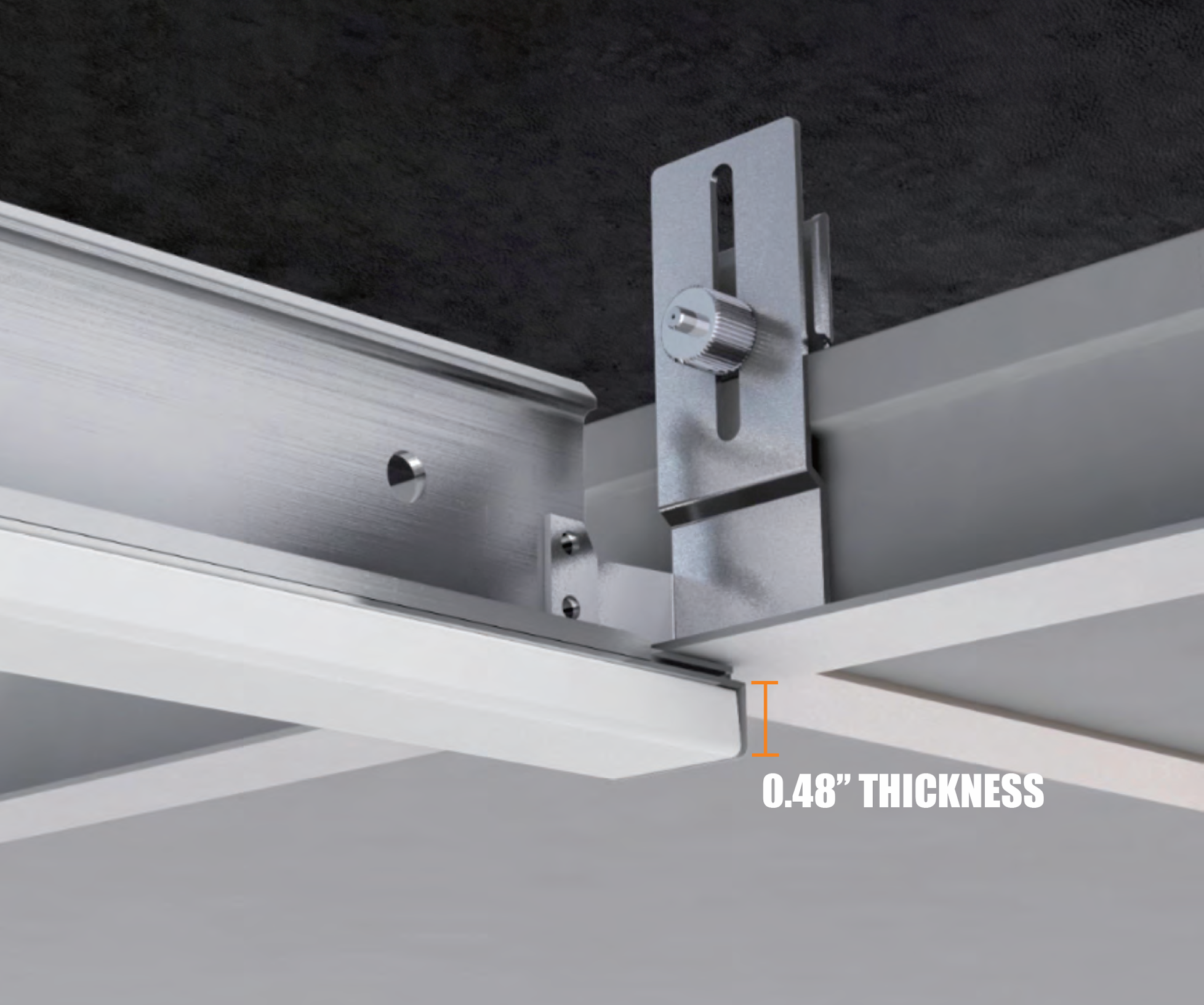

Mounting options include 9/16” flat, 9/16” slot, 9/16” interlude, and 15/16” flat T-grid ceilings.
WARRANTY
5 year warranty standard, Optional 10 year warranty available upon request.
LISTINGS/COMPLIANCE
• UL
