Octane Troffer

DESCRIPTION
The Octane Architectural Troffer is a versatile LED lighting fixture designed for offices, schools, retail, and healthcare spaces, available in 1’x4’, 2’x2’, and 2’x4’ sizes with adjustable wattage and color temperature (3500K/4000K/5000K). Features high efficacy up to 125 lm/W, multiple dimming and emergency options, and is compatible with surface or recessed/flange mounting kits for flexible installation in low-plenum environments.

APPLICATION

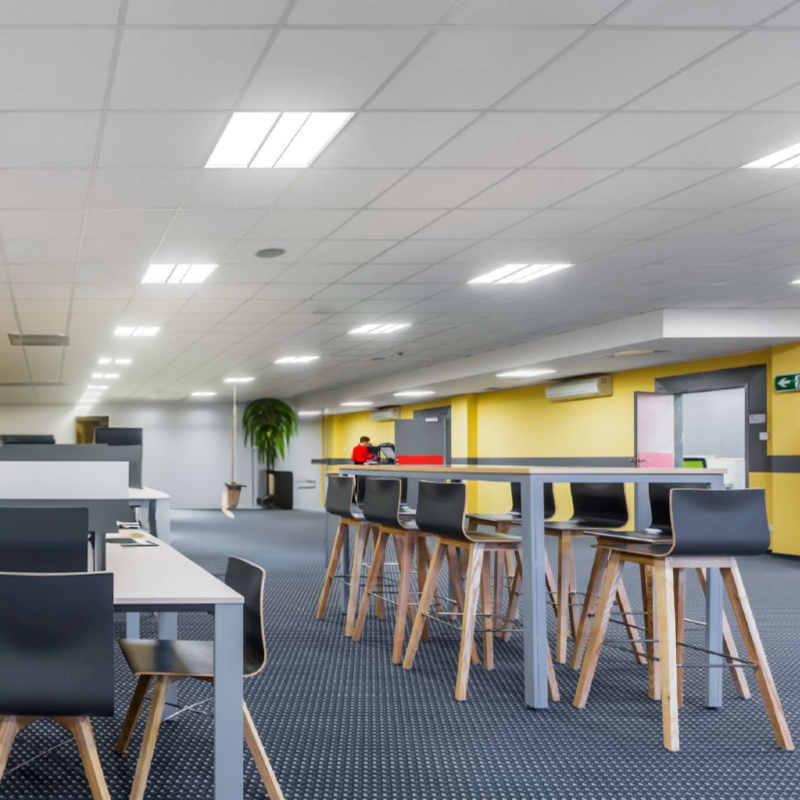

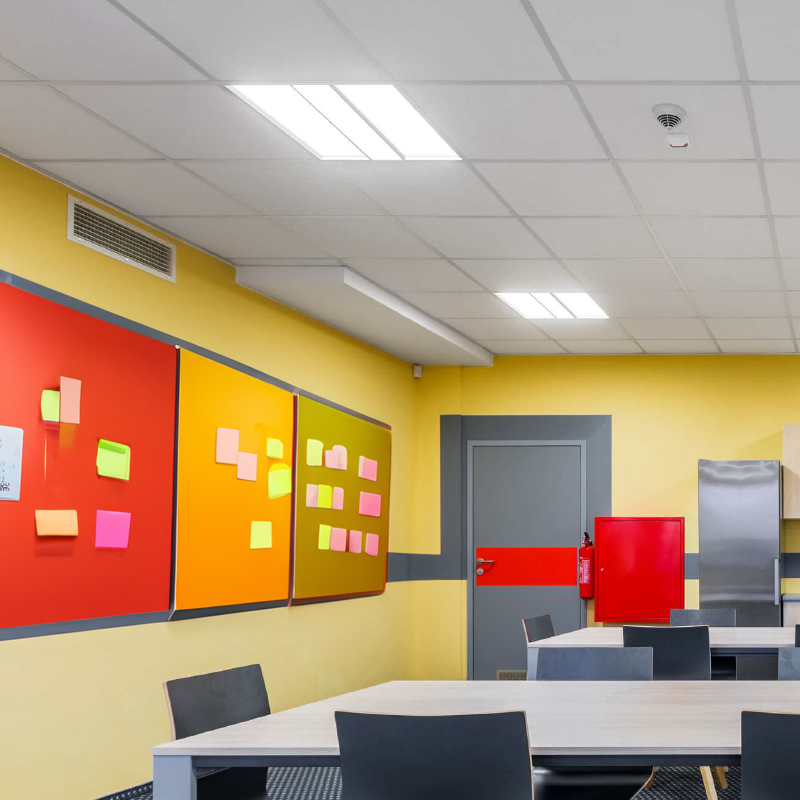

Perfect for a wide range of indoor environments, including offices, schools, hospitals, hotels, supermarkets, retail locations and other indoor lighting needs. Designed for exceptional performance, this fixture enhances any space with its reliable illumination.

LENGTH

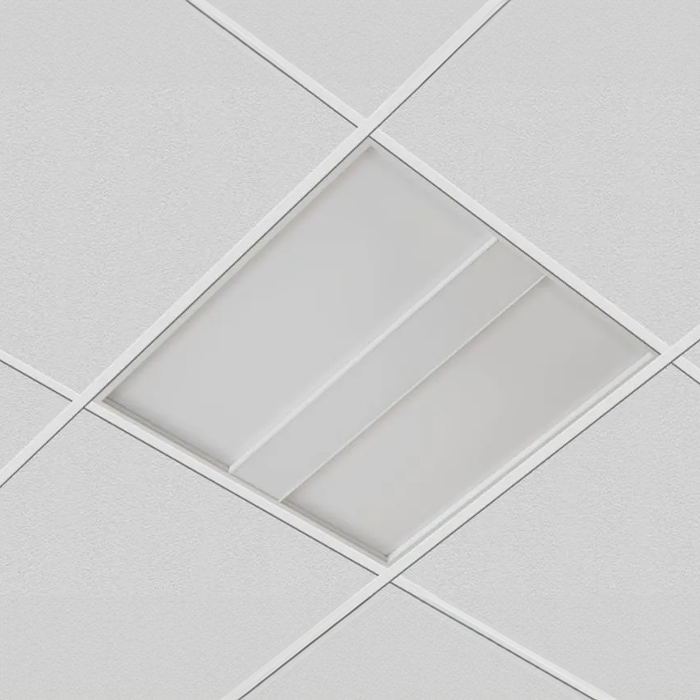

Octane Architectural Troffer comes in 1’x4’, 2’x2’, and 2’x4’ sizes to fit standard ceiling grid layouts.

FEATURES
– Max Run Wattage
– CRI options 80+
– 0-10V Dimming to 10%
– Field and factory-installed emergency inverters (6W, 8W, 12W)

CONSTRUCTION
Aluminum housing acting as the heat sink to maximize life. Damp rated in operating ambient temperatures of -20˚C – 40˚C.

MOUNTING
Available in a surface and recessed/flange mounting options, with kits available for 1’x4’, 2’x2’, and 2’x4’ fixture sizes.

WARRANTY
5 year warranty standard, Optional 10 year warranty available upon request.

LISTINGS/COMPLIANCE
• UL
