SnapTrim Canless Downlight

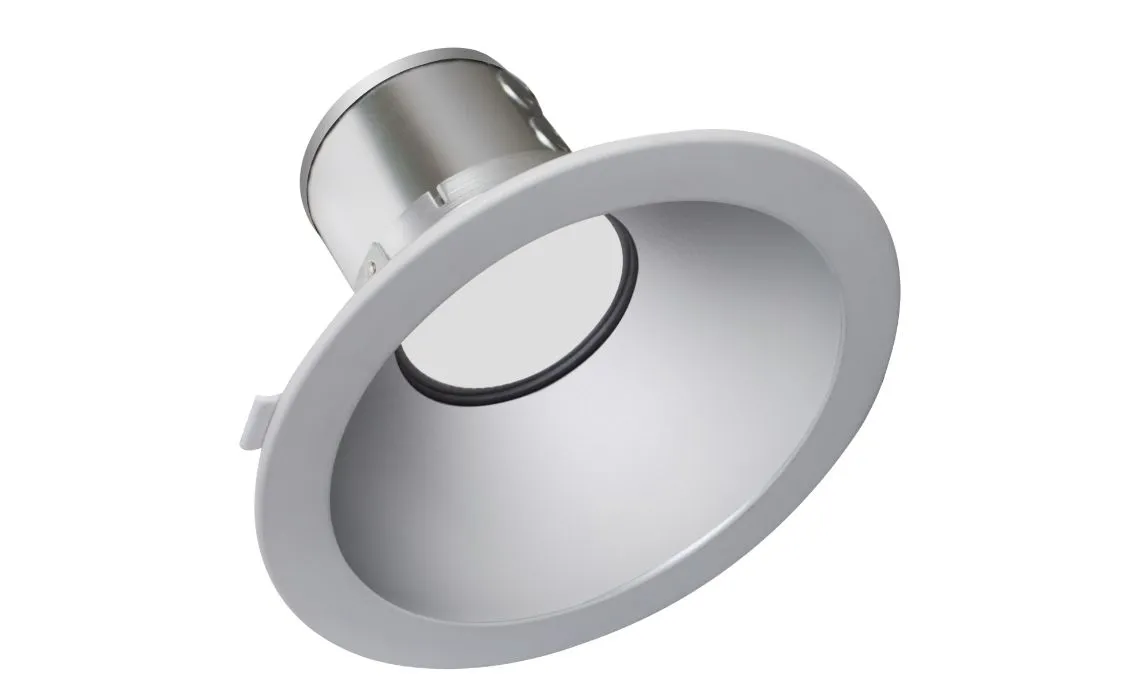

The Vivid Forms J-box LED commercial downlight from the CPS series is available in sizes ranging from 4 inches to 10 inches, with a maximum power rating of 40 watts. Its innovative design allows for the separation of the junction box and trim, providing greater flexibility. The installation process is made easy with adjustable butterfly clips, and it features an integral junction box that eliminates the need for a traditional recessed housing. This downlight can be directly mounted into the ceiling during new construction, simplifying the installation process. No can, bulb, or additional labor is
required. It is specifically designed and engineered for recessed applications, making it suitable for various commercial and public spaces, enhancing the ambiance of places like shopping malls, hospitals, airports, hotel lobbies, and more.


UL, CUL , Energy Star and Damp Rated
40W maximum with 4″, 6″, 8″ and 10″ trim size options

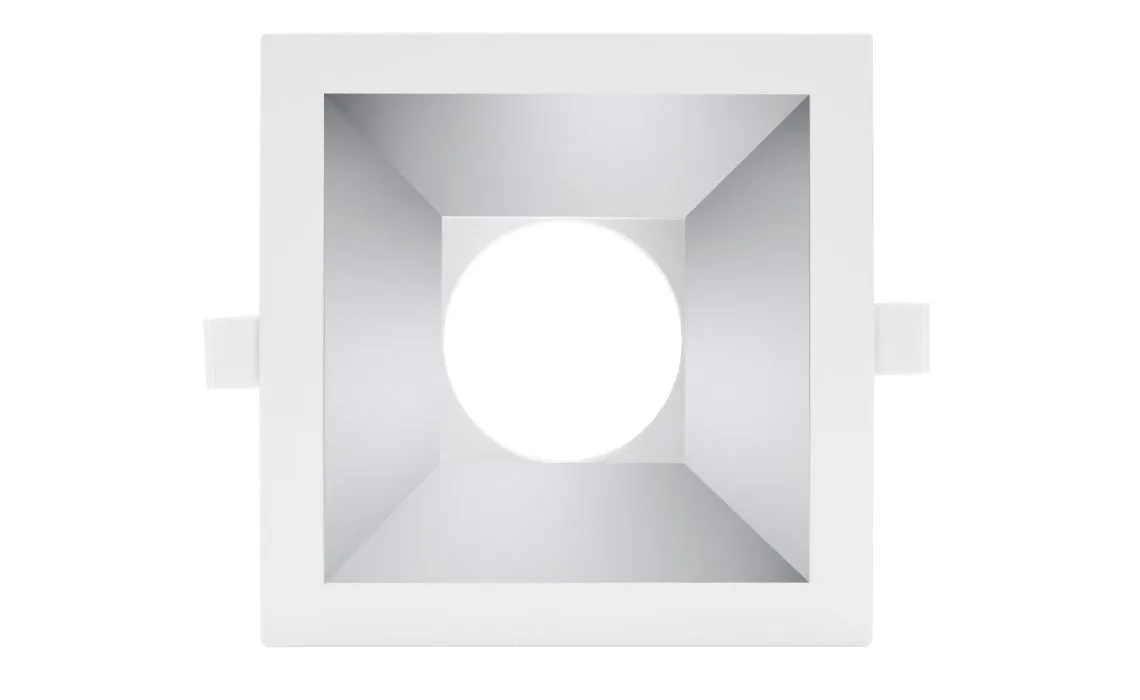

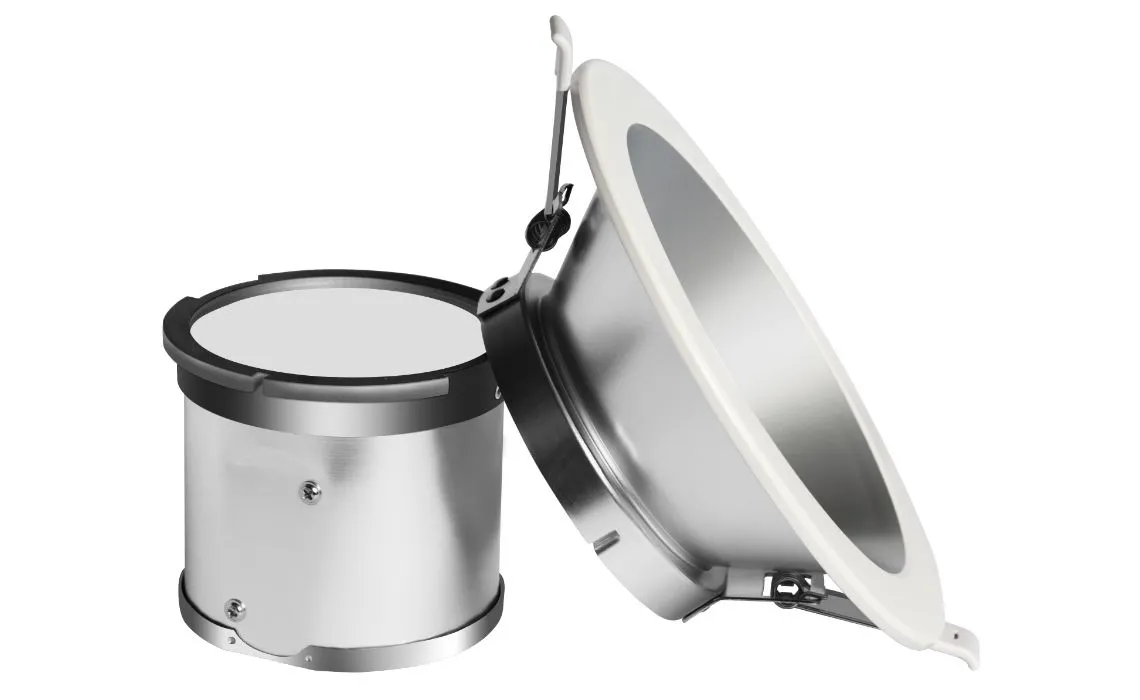

Available in round, square, round wall wash and square wall wash trims Twist-lock modular design

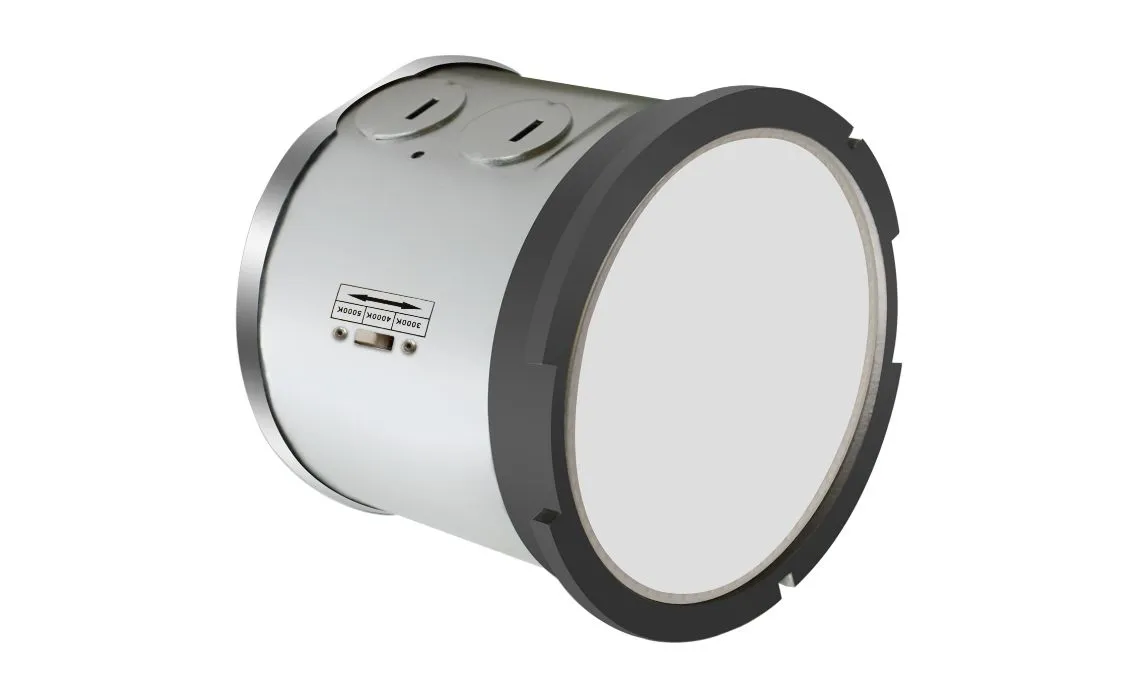

Integrated J-box for direct wire, eliminated recessed can CCT adjustable and wattage selectable

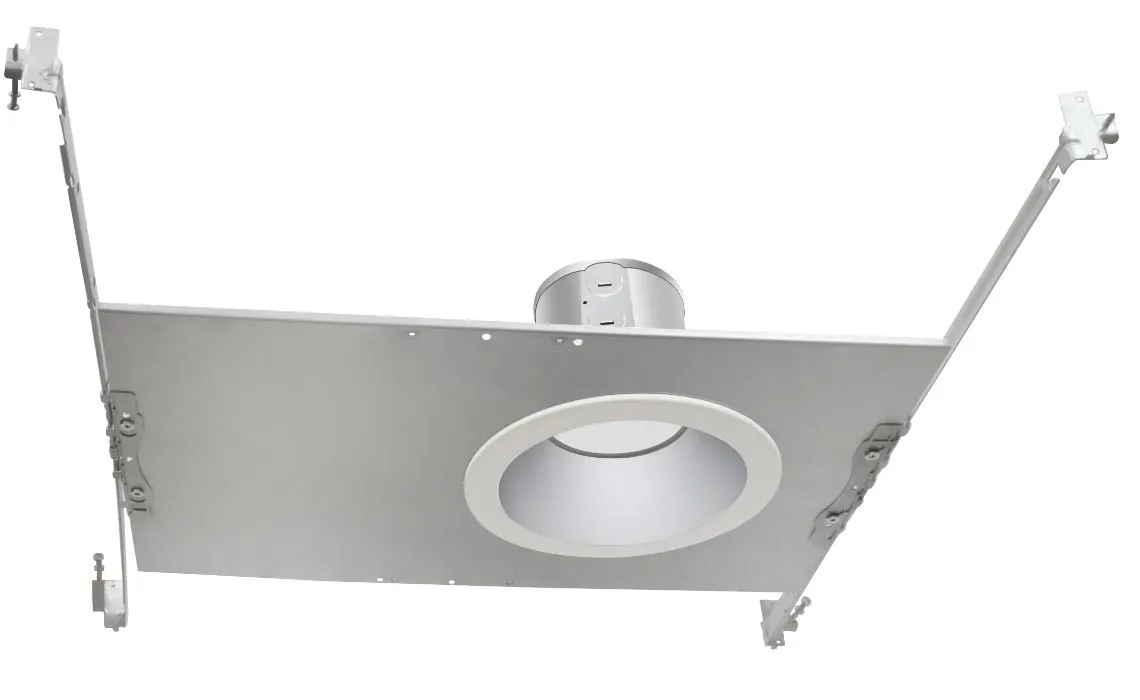

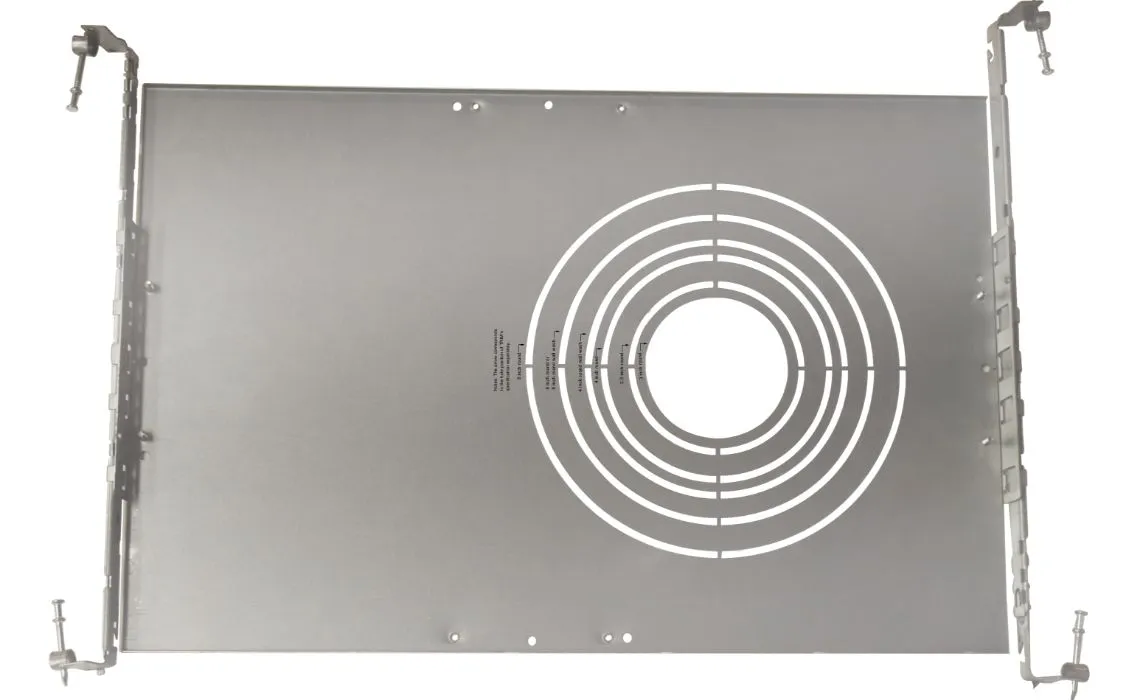

New construction frame kit available

50,000 Hours Lifespan
5 Year Limited Warranty
