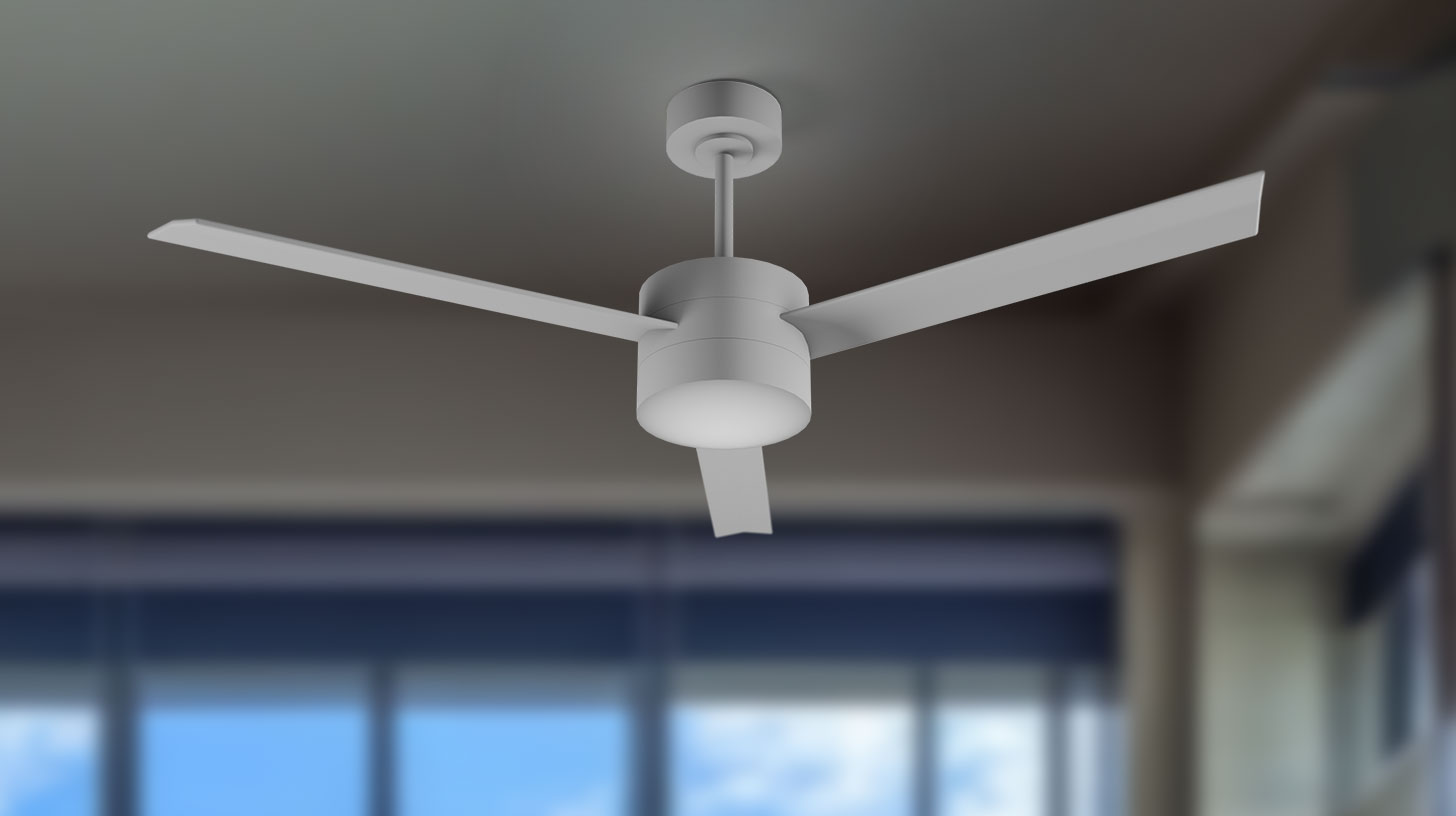

Modern Ceiling Fan
Applications

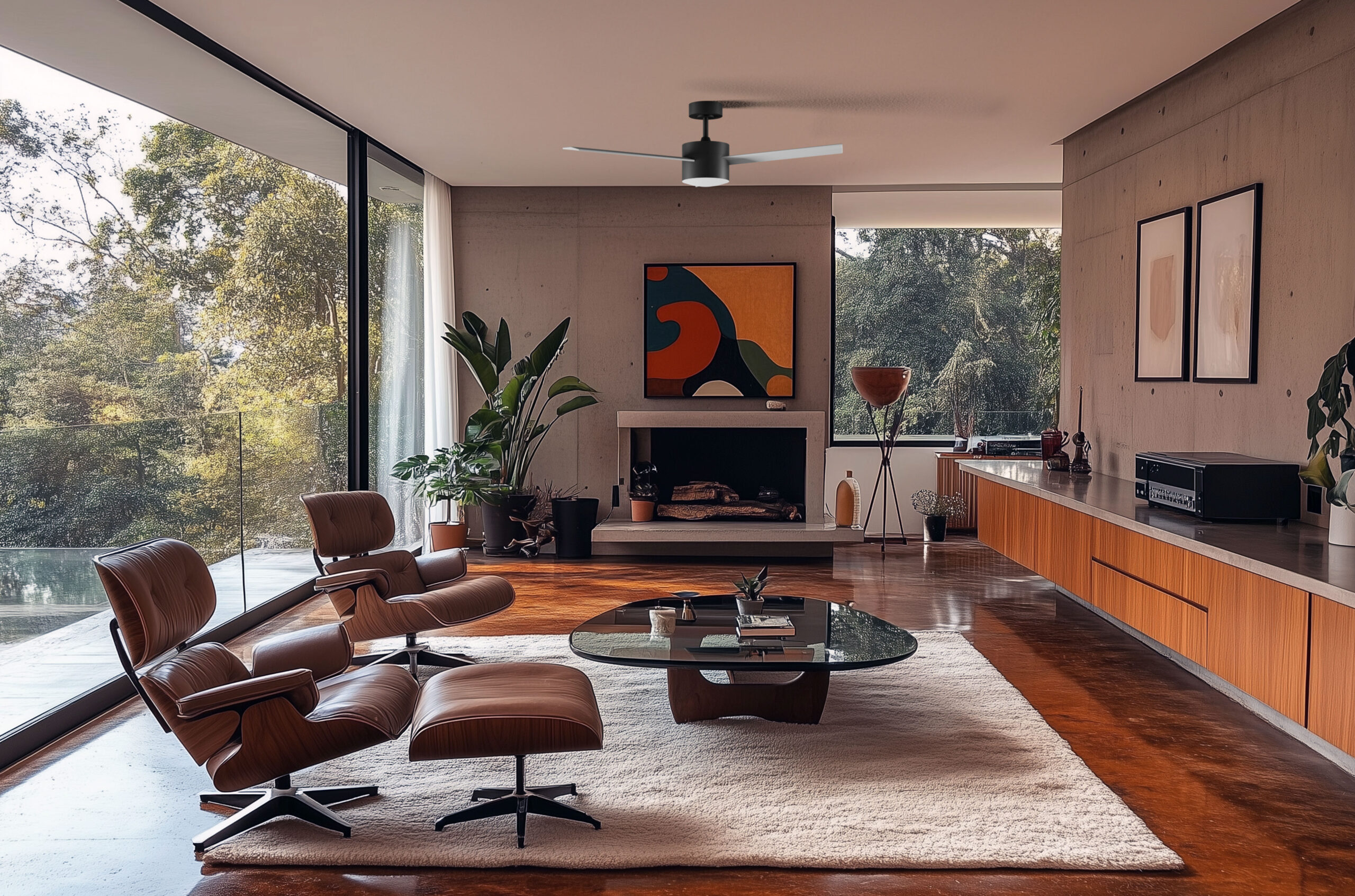

Master Bedroom, Kids Room, Living Room / Great Room, Fitness Room, Bonus Room / Game Room, Kitchen
Warranty
1 Year Warranty [Light Kit]
5 Year Warranty [Motor]
See warranty documentation for more information.
Construction
Electrical
Performance
Construction
Diameter: 52″
Height 16.7″/21.7″
Light Source: LED 18W
Lumens: 1800LM
CCT: 3000K, 4000K, 5000K
Lens Material: Polycarbonate
Motor Type: AC
Blade Pitch: 12°
Electrical
Input Voltage: 120VAC
Total Watts (High): 62W
Controls: Remote Control / Wall Switch
Performance
Airflow [High]: 5200 CFM
Efficiency: 84 CFM/W
RPM/Low: 91 [0.137A, 18W]
RPM/Mid: 153 [0.306A, 40W]
RPM/High: 216 [0.519A, 62W]
