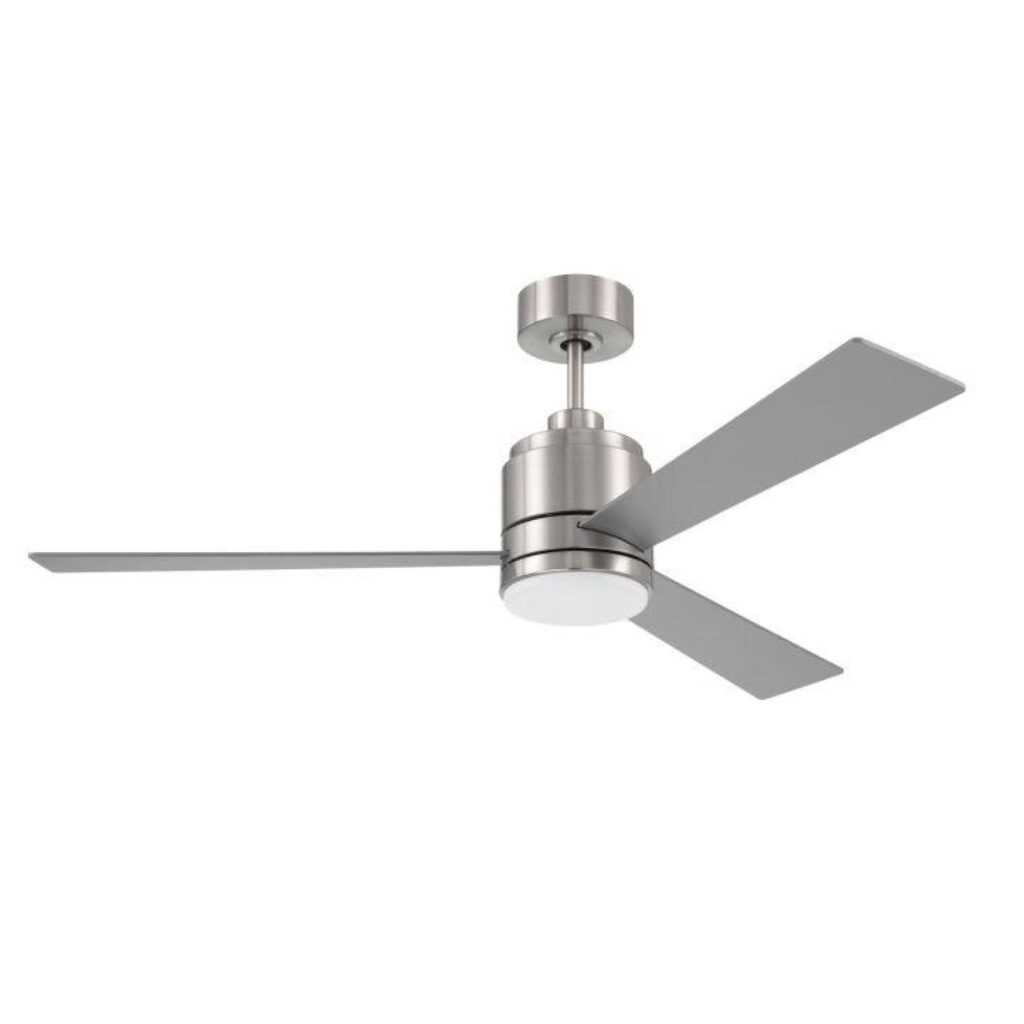

52″ Elevate

APPLICATION

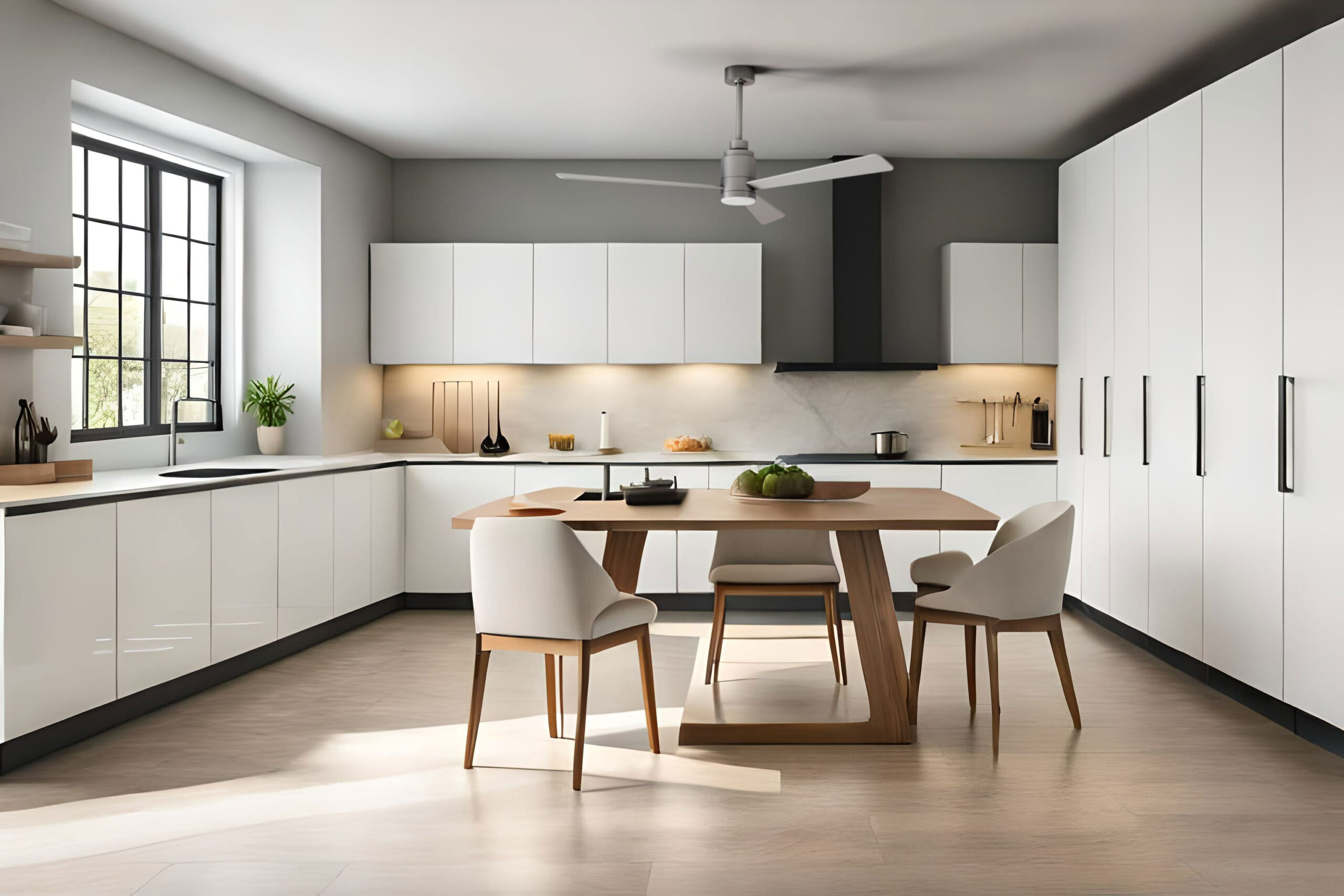

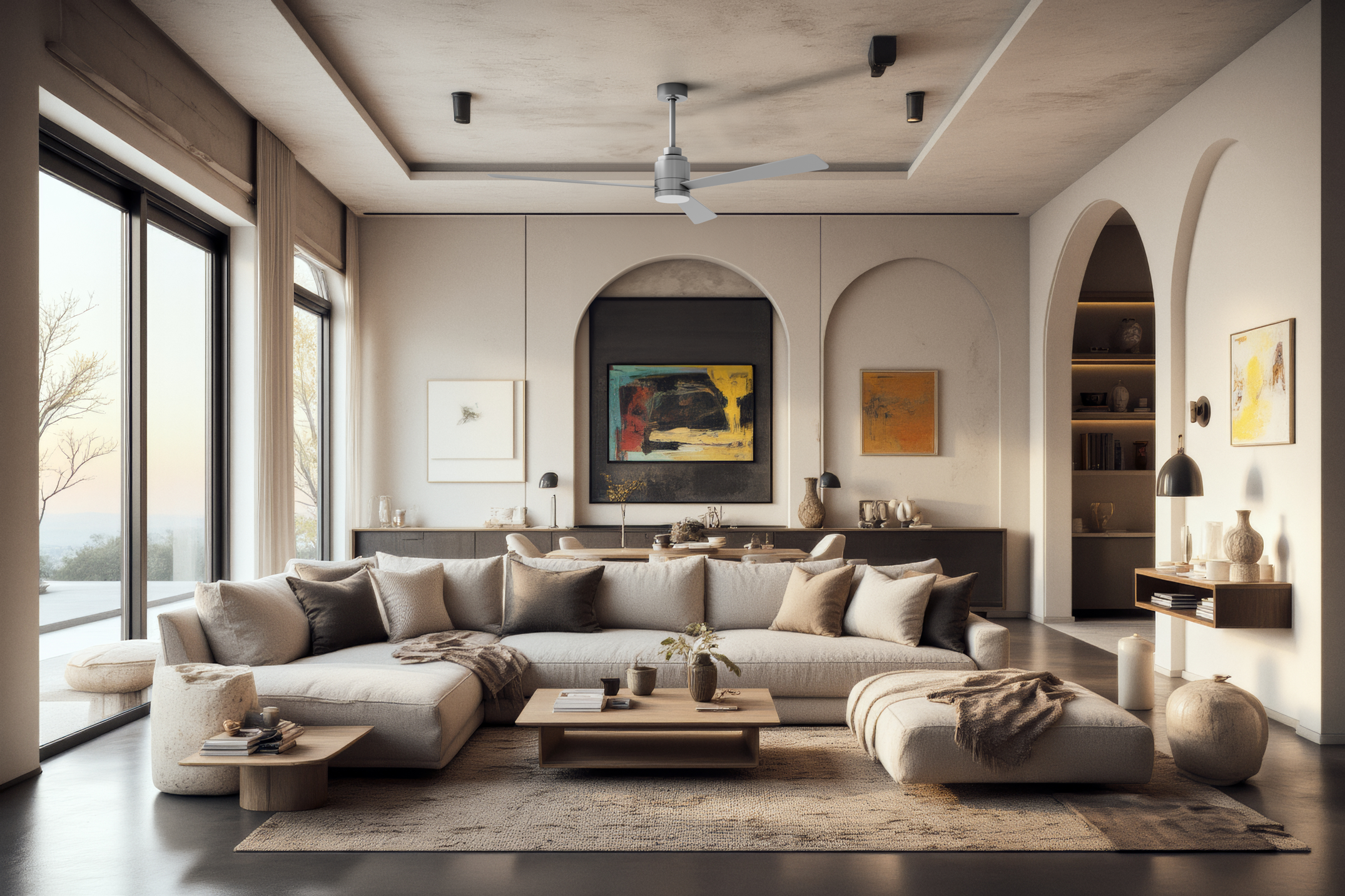

The 52” Elevate series is ideally suited for spaces such as the master bedroom, kids room, living room or fitness room, bonus room or game room, and kitchen.

FEATURES
Diameter: 52”
Height 12”
Light Source: LED 18W
Lumen: 1620lm
CCT: 2700K, 3000K, 6000K
Lens Material: Polycarbonate

ELECTRICAL
Input Voltage: 120V/AC
Total Watts (High): 55W

PERFORMANCE
Airflow [High]: 4500CFM
Efficiency: 81 CFM/W
RPM/Low: 81
RPM/Mid: 135
RPM/High: 185

BLADES
– 52” Blades Sweep
– Blades Pitch: 12°
– Reversible: YES

MOTOR
Motor Type: Premium Silicone Steel AC Motor
17.5” Wire leads

ROOM SIZE
225~400 ft²

CONTROLS
– Wall Control

WARRANTY
1 Year Warranty (Light Kit).
5 Year Warranty (Motor).
See warranty documentation for more information.
